Desktop Direct Thermal

TDP-244 TDP-225

  • Profile View
  • Front View
  • Inside View



Overview for the TDP-244 Series

Historic Reliability At An Affordable Price

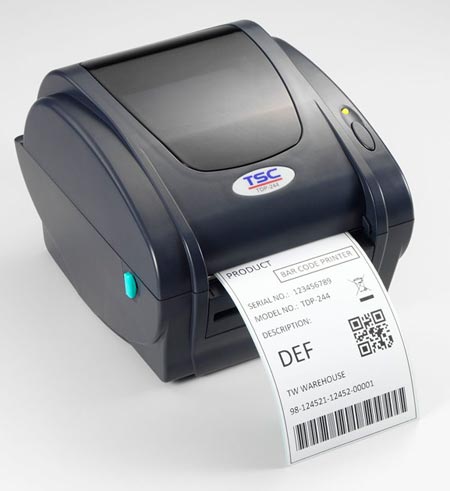

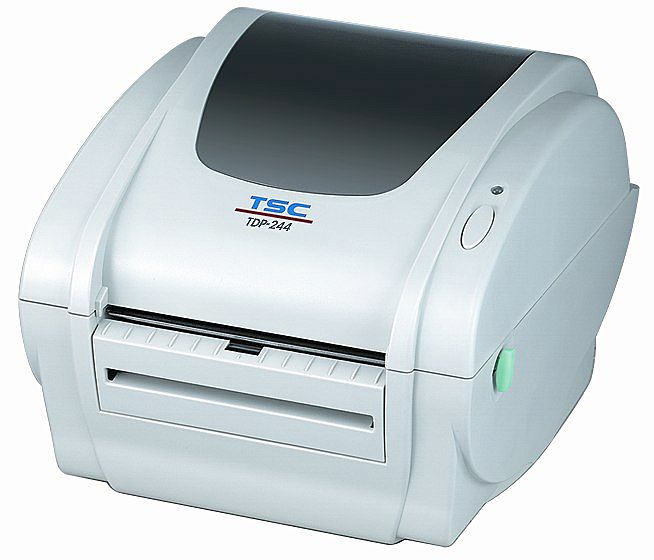

TSC is pleased to introduce the TDP-244 direct thermal desktop printer. In typical TSC fashion, the TDP-244 offers a perfect combination of ultra low cost with a durable and reliable design.

TSC has been leading the way in 4” direct thermal desktop printers since the introduction of its best selling TDP-245 model in 2002. The TDP-244 is a new economy version of the proven TDP-245 architecture which has an installed base of over 100,000 printers.

The new TDP-244 printer features 203 DPI resolution, print speeds up to 4 inches per second and high speed USB 2.0 connectivity. Its large 60 watt power supply produces high quality printed labels.

The TDP-244 is an ideal printer for product marking, shipping, retail and other labeling applications at the best price anywhere. For easy loading, the TDP-244 employs a user-friendly double-wall clamshell design with a large five-inch (outside diameter) center-biased media bay. Top-of-form sensing – by gap, black mark, or notch – is standard and completely adjustable from side to side. It also comes with a head-open sensor.

The TDP-244 has plenty of memory with 8MB DRAM and 4 MB FLASH that can be used for easy storage of fonts, international character sets and graphics, and it supports, “right out of the box,” a fully compatible set of standard industry emulations, including Eltron® and Zebra® languages, making it easy to replace old installed hardware.


Overview for the TDP-225 Series

The Small Label Printer With Big Features

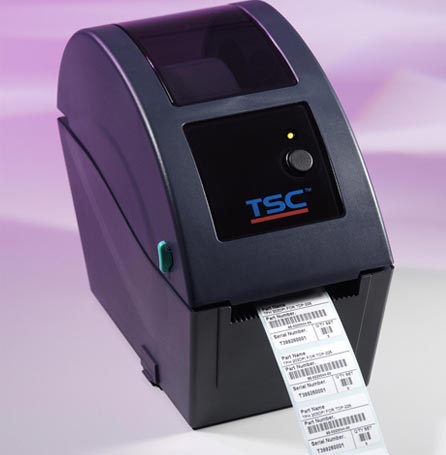

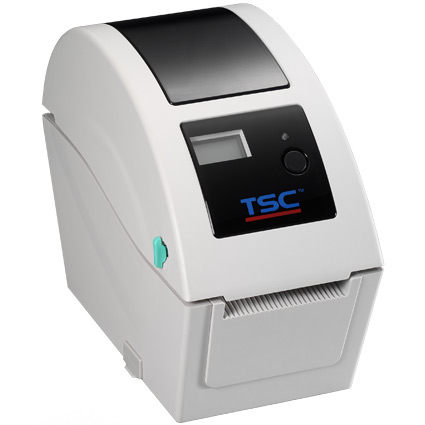

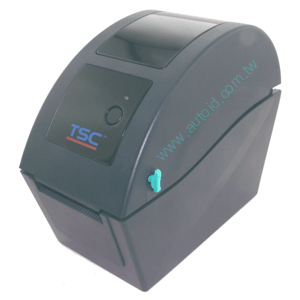

Built with TSC durability, reliability and commitment to innovation, the 2-inch-format TDP-225 direct thermal printer features a compact design and high performance engine that make it ideal for retail and other labeling applications.

The TDP-225 prints at 5 ips and is the first low-cost compact 2-inch desktop printer to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in stand-alone or down-time situations.

Designed with no losable parts, the compact TDP-225 fits into tight spaces and supports a wide range of applications. It also features a user-friendly clamshell design that allows users to simply open the cover and drop labels into a spring-loaded 5-inch OD media bay. Top-of-form sensing by gap, black mark or notch is standard, and the black mark sensor is completely adjustable from side to side.

With enhanced electronics, the TDP-225 offers a 200 MHz processor, standard memory of 4 MB Flash, 8 MB SDRAM and a MicroSD expansion slot that increases Flash storage up to 4 GB. The printer supports standard industry emulations, including the Eltron® and Zebra® languages.

Our Commitment

At Barcode Systems our staff is available to answer your questions and to help you obtain an optimun solution for your particular need.

Contact us here


Key Features TDP-244

Key Features TDP-225
