Desktop Thermal Transfer

TTP-244 TTP-245C TTP-247

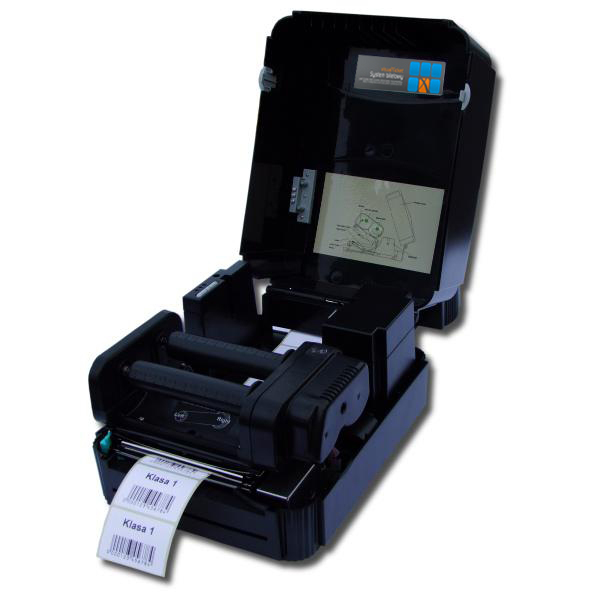

Overview for the TTP-244 PLUS Series

High Performance That Won’t Break The Budget

There are plenty of cheap plastic desktop label printers available on the market. But the TTP-244 Plus thermal transfer barcode printer is the only inexpensive solution that offers a powerful processor, generous memory, internal scalable fonts and the world’s most popular bar code printer language emulations in one small package.

The TTP-244 Plus is ideal for customers looking for a high quality bar code printer, coupled with low ownership costs. The TTP-244 Plus is competitively priced, comes with a two-year warranty, and accommodates a 300-meter-long ribbon, which keeps both daily and lifetime operating costs lower than other comparable printers.

The TTP-244 Plus offers the largest media and ribbon capacities in its class. Unlike most printers, it can easily handle both a 300-meter ribbon and a full 8-inch OD roll of labels. With its fast print speed, along with the largest memory capacity in its class, the TTP-244 Plus easily outperforms the competition.

With its small, compact footprint and dual-motor design, the TTP-244 Plus is perfect for a wide variety of label and tag printing applications – everything from shipping labels to compliance and general purpose product-identification labels & tags.

The TTP-244 Plus supports PDF417 and MaxiCode two-dimensional bar codes used to print complex transportation formats – a feature that makes it ideal for automobile service shops, stock rooms, and walk-in shipping and mail centers.

Overview for the TTP-245C Series

The High-performance Printer With A Small Footprint

The TSC™ TTP-245C series of desktop thermal bar code printer, with its new, smaller footprint, offers the high performance that customers have come to expect from TSC™. Durable, reliable and fast, the TTP-245C generates 4-inch-wide labels, tags or receipts at up to 6 ips, offering a price-performance combination that is unmatched by other desktop thermal bar code printers on the market.

The TTP-245C incorporates a 200 MHz 32-bit processor that offers fast “first label out” throughput, with no between-label delays, even when using its internally scalable True Type fonts. Using its standard internal Ethernet port, the TTP-245C can be quickly integrated with any network.

The TTP-245C’s easy-to-use design speeds up ribbon and media loading. And with the smallest footprint ever for a TCS 4-inch desktop printer, the TTP-245C series easily fits into cramped workspaces.

TTP-245C series includes the TTP-343C and TTP-244CE printers. The TTP-343C offers 300 dpi resolution and is ideal for 2-D bar codes, fine text and complex graphics. The basic model TTP-244CE, the lowest-priced of the three printers, offers an extensive suite of bar code labeling features, including 4 ips speed and a standard USB 2.0 interface.



Overview for the TTP-247 Series Series

Industry-leading Performance At A Budget Price

The new TTP-247 thermal transfer desktop bar code printer series delivers more performance for the price than any other printer in its class. Based on the design of its best-selling predecessor, the TTP-245 Plus, the TTP-247 runs at an impressive 7 inches per second, printing up to 4 inches wide at 203 dpi resolution. A second model in the series – the TTP-345 – offers high resolution 300 dpi printing at 5 inches per second. Both models offer 8 MB of SDRAM and 4 MB of onboard Flash memory. Gigabytes of Flash memory can be added via an onboard SDHC card reader.

TTP-247 series offers USB 2.0, parallel and serial connectivity, plus an optional Ethernet port for networking. It also incorporates the TSPL-EZ™ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ™ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.

Like its predecessor, the TTP-247 series features a user-friendly clamshell design for easy drop-in media loading, along with a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its innovative two-motor gear-driven engine is powerful enough to handle a 300-meter-long ribbon and label rolls up to 8.4 inches in diameter.

By using two motors instead of the usual one, TTP-247 series printers operate at lower torque, reducing noise, decreasing wear and tear, and extending printer life. The platform’s user-friendly design makes it easy for operators to load and unload ribbons, and its 300-meter capacity is more than four times the industry-standard length for desktop printers.

The TTP-247 series holds up to a 5-inch OD roll on a 1-inch core and, using an optional external media hanger, can accommodate a full 8.4-inch OD label roll on a 3-inch core. With its many performance features and budget-friendly price, the TTP-247 series is by far one of the most attractive thermal transfer bar code printers on the market.

Applications

  • Business/ office
  • Product marking
  • Compliance labeling
  • Asset tracking
  • Document management
  • Shelf-labeling
  • Shipping/ receiving
  • Specimen labeling
  • Inventory control
  • Patient tracking



Our Commitment

At Barcode Systems our staff is available to answer your questions and to help you obtain an optimun solution for your particular need.
