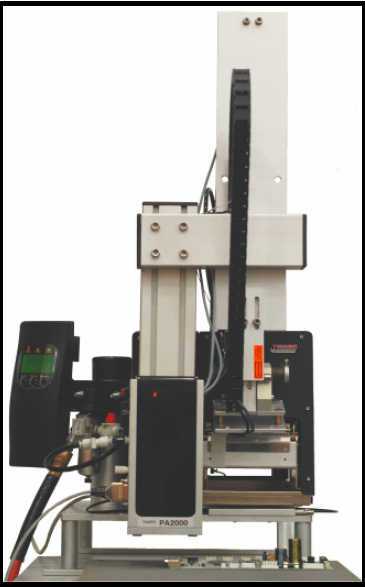

Overview for the PA2000

The PA2000 is a powerful accessory for Tharo H-400/H-600 Series thermal transfer/direct thermal bar code label printers. The PA2000 features a smaller footprint, 16.5" wide x 32" tall x 30" long, than other Printer/Applicators, with a remote front panel for easy access, regardless of the orientation of the applicator. This allows the PA2000 to be installed in locations where other Printer/Applicators cannot.

PA2000 SPECIFICATIONS
Minimum Label Size: .20" x .20" (5mm x 5mm) with specialty tamp
3" x 1" (76.2mm x 25.4mm) with Tamp Blow
Maximum Label Size: 6" x 8" (152.4mm x 203mm)
Placement Accuracy: Stationary: +/- 0.01" (.25mm) or Moving: +/-0.125" (3mm) (for example: conveyor belt applications)
Speed: Up to 58 labels per minute*
Weight of Applicator: 27 lbs (12kg) - 37 lbs (17kg)
Weight of Stand: 120 lbs (55kg)
Standard Stroke Length: 17" total (432mm) (10" (254mm) below table) Custom length cylinders are available upon request.
Air Requirement: 75 to 90 psi (5 to 6 bar)
Printer Type: Tharo H-427, H-436, H-626 or H-634 Direct Thermal or Thermal Transfer Printers
Power Source: Switchable: 100V 60Hz or 230V 50Hz
Environmental: Temp 50°-95° F (10°-35°C) at 10-85% humidity
Standards: Built to CE safety and emissions standards. RoHS compliant upon request.

* Speeds are approximate. Product size, label size, printer model and conveyor speed will determine actual throughput

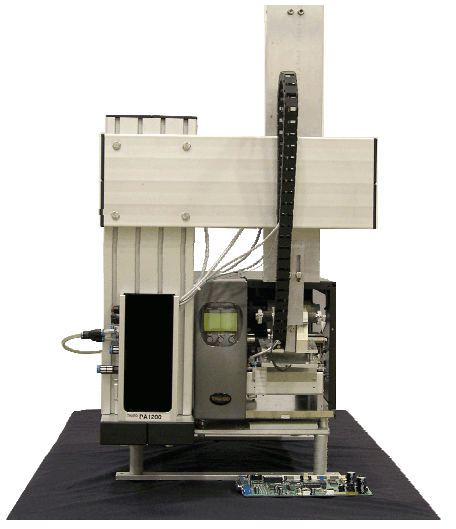

Overview for the PA-1200 Series

The PA1200 customizable tamp pad comes pre-fitted with a nonstick plastic surface to suit your labeling needs. This applicator is easy to use, with minimal adjustments necessary and quick setup and changeover for applying labels to either the top or side of variable or common height products.

Also...

  • Easy To Use – The Tharo PA1200 Printer/Applicator is easy to use, with minimal adjustments necessary and quick setup and changeover for applying labels to either the top or side of the product. The PA1200 is also available in front apply, dual tamp and corner wrap configurations.

  • Fast – The PA1200 is quick and accurate, applying up to 60 labels per minute, depending on label size, printer used, and height of the products. A switching device, such as a foot switch, optical sensor or PLC (Programmable Logic Controller) can be connected to the applicator’s PLC port to initiate the print and apply cycle. LEDs provide visual operating status and error conditions.

  • High Compatibility – By allowing for height, width, and depth adjustments, the compact PA1200 is specifically designed to be universally compatible with nearly any thermal transfer/direct thermal label printer.

  • Cost-effective – With minimal training, quick integration and increased personal productivity, the PA1200 provides a rapid return on investment.

  • Controlled Contact – The use of springs and an adjustable pressure sensing switch on the tamp pad allows for very precise label placement and controlled contact.

  • Easy To Service – The small amount of moving parts, combined with the best technical support in the industry, makes maintaining and servicing the PA1200 quick and easy.

  • Tremendous Accuracy – The PA1200 is capable of label placement accuracy within 0.01” for stationary products, or 0.125” for moving products.

PA1200 SPECIFICATIONS
Minimum Label Size: 3" x 1"
Maximum Label Size: 4" x 6.5"
Placement Accuracy: Stationary: +/- 0.01" (.25mm) or Moving: +/-0.125" (3mm) (for example: conveyor belt applications)
Speed: Up to 40 labels per minute*
Weight of Applicator: 27 lbs (12kg) - 37 lbs (17kg)
Weight of Stand: 120 lbs (55kg)
Standard Stroke Length: 17" total (432mm) (10" (254mm) below table) Custom length cylinders are available upon request.
Air Requirement: 75 to 90 psi (5 to 6 bar)
Printer Type: Datamax I-Class and Zebra ZM400 Direct Thermal or Thermal Transfer Printers
Power Source: Switchable: 100V 60Hz or 230V 50Hz
Environmental: Temp 50°-95° F (10°-35°C) at 10-85% humidity
Standards: Built to CE safety and emissions standards. RoHS compliant upon request.

* Speeds are approximate. Product size, label size, printer model and conveyor speed will determine actual throughput

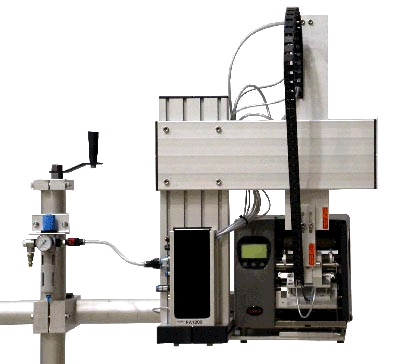

Overview for the PA1200CW Series

For specialty applications requiring a label to wrap around a corner. This applicator can be setup to wrap onto the front and top of a product or the front and side of a product. Applies up to 13" labels in a timely fashion. Why put two labels on a box if you can get away with just one?


PA1200CW SPECIFICATIONS
Minimum Label Size: 4" x 4"
Maximum Label Size: 4.4" x 13.0"
Placement Accuracy: Stationary: +/- 0.01" (.25mm) or Moving: +/-0.125" (3mm) (for example: conveyor belt applications)
Speed: Up to 15 products per minute*
Weight of Applicator: 37 lbs (17kg)
Weight of Stand: 120 lbs (55kg)
Swing Length: 26" (660.4mm)
Air Requirement: 75 to 90 psi (5 to 6 bar)
Printer Type: Tharo H-Series Direct Thermal or Thermal Transfer Printer
Power Source: Switchable: 100V 60Hz or 230V 50Hz
Environmental: Temp 50°-95° F (10°-35°C) at 10-85% humidity
Standards: Built to CE safety and emissions standards. RoHS compliant upon request.

* Speeds are approximate. Product size, label size, printer model and conveyor speed will determine actual throughput

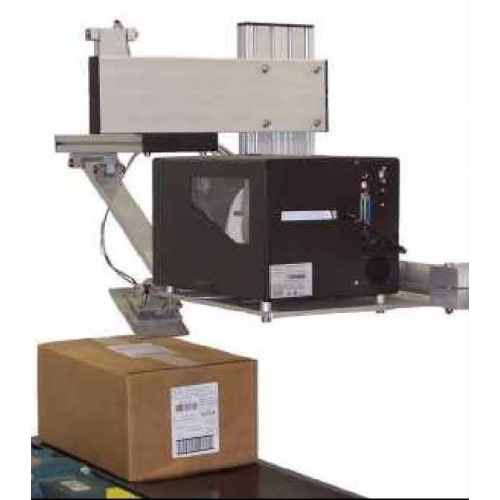

Overview for the PA-1200DT Series

For specialty applications requiring a label to be applied to the front and top of a product, or the front and side of a product with one machine. With extreme accuracy this machine will do what two machines have done in the past.

PA1200DT SPECIFICATIONS
Minimum Label Size: 4" x 8.0"
Placement Accuracy: Stationary: +/- 0.01" (.25mm) or Moving: +/-0.125" (3mm) (for example: conveyor belt applications)
Speed: Up to 11 products per minute*
Weight of Applicator: 37 lbs (17kg)
Weight of Stand: 120 lbs (55kg)
Swing Length: 26" (660.4mm)
Air Requirement: 75 to 90 psi (5 to 6 bar)
Printer Type: Tharo H-Series Direct Thermal or Thermal Transfer Printer
Power Source: Switchable: 100V 60Hz or 230V 50Hz
Environmental: Temp 50°-95° F (10°-35°C) at 10-85% humidity
Standards: Built to CE safety and emissions standards. RoHS compliant upon request.

* Speeds are approximate. Product size, label size, printer model and conveyor speed will determine actual throughput

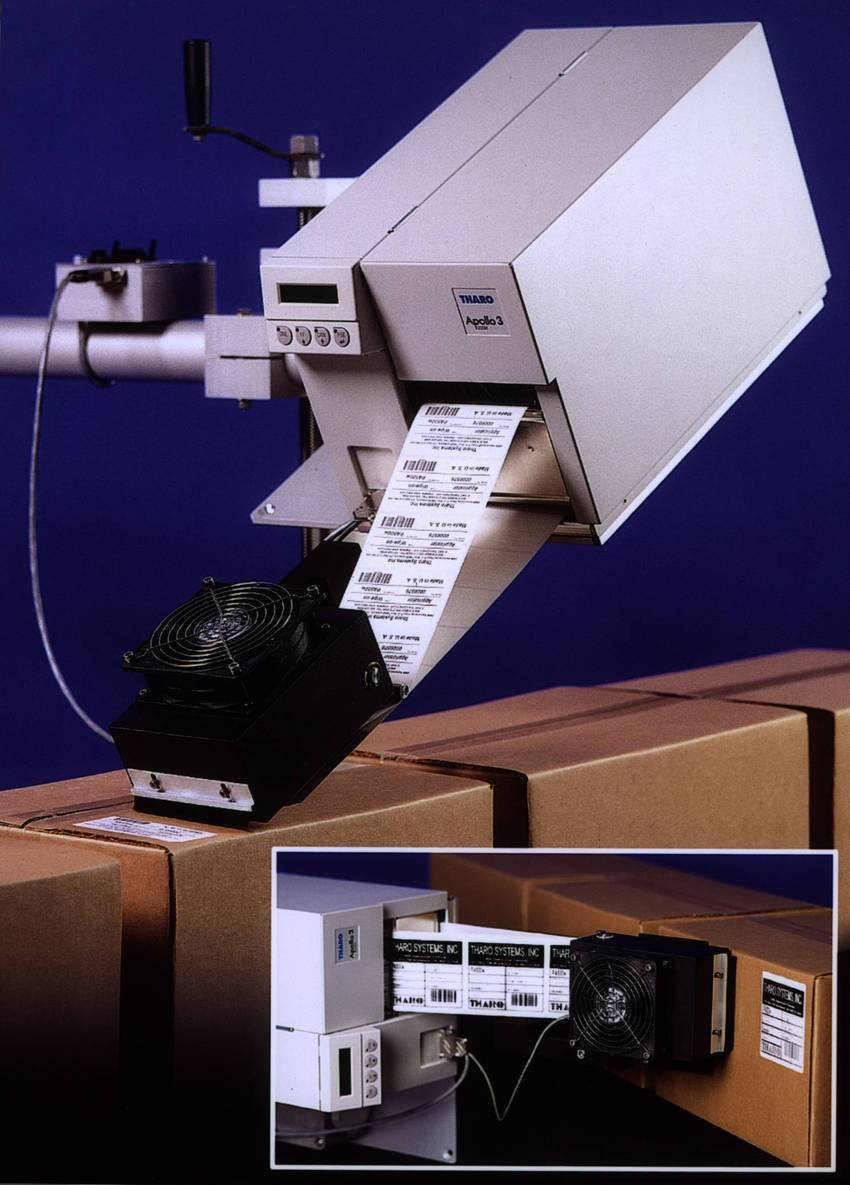

Overview for the PA-500W Series

With quick integration and increase productivity, the PA500w is an inexpensive solution for your demanding labeling requirements. Since the system is electric, there is no need for compressed air. The wipe on brush assures proper application to smooth, flat surfaces as well as uneven surfaces.

PA500W SPECIFICATIONS
Minimum Label Size: 3" x 1"
Maximum Label Size: 4.5" x 7.0"
Placement Accuracy: +/-0.125" (3mm)
Speed: Over to 100 labels per minute
Weight of Applicator w/table 20 lbs (9.07kg)
Weight of Stand: 95 lbs (43kg)
Weight of Stand only: 95 lbs (43kg)
Air Requirement: None
Supply Roll: 8" (200mm) maximum O.D. on cores from 1.57" to 3"
Printer Type: Tharo H-Series Direct Thermal or Thermal Transfer Printer
Power Source: Switchable: 100V 60Hz or 230V 50Hz
Environmental: Temp 50°-95° F (10°-35°C) at 10-85% humidity
Standards: Built to CE safety and emissions standards. RoHS compliant upon request.

* Speeds are approximate. Product size, label size, printer model and conveyor speed will determine actual throughput
